Tour Edge Hot Launch E523 Single Iron-Wood

Tour Edge Hot Launch E523 Iron-Woods

Easy Distance and Accuracy

These hollow iron-wood designs put a major emphasis on ease of launch, playability and correcting miss-hits and slices to go straighter for the ultimate in ease of use.

The improved hollow-body design of the Hot Launch E523 Iron features the game-changing Houdini Sole in conjunction with a super-shallow face, slice-fighting offset designs and heel weighting for added draw bias.

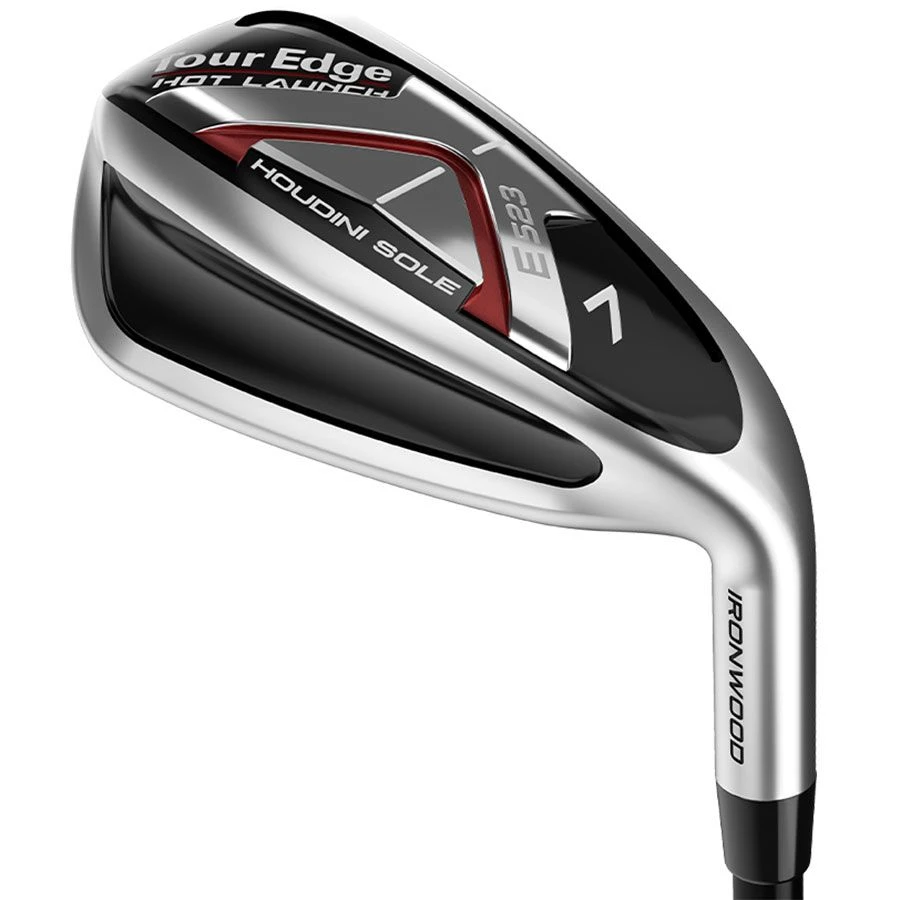

Houdini Sole Technology

The Houdini Sole is a raised steel mass area at the rear of the clubhead, as well as a curved leading edge under the face. The patented Houdini Sole reduces the amount of sole area to reduce drag and turf interaction by 35% and is instrumental in significantly altering the CG placement of the E523 Iron, making it one the highest launching and easiest to hit irons ever produced.

Hollow-Body Perimeter Weighting

Hollow-body perimeter weighting produces distance properties of a metalwood in an iron-like design. Hollow-body perimeter weighting produces maximum ball speed off an iron. The hollow-body design makes for an extremely low and back CG, helping to create a very forgiving and powerful face.

Shallow Face / Offset Design

The super-shallow face coupled with an offset design are designed for extreme playability and high-flying launch characteristics. The offset design acts as built-in slice fighting technology, squaring the clubhead at impact to produce anti-slice ball flights. The extremely shallow face produces higher launch angles and extreme ease of launch with extreme forgiveness.

Concave Body Design

A new concave design added to the E523 Iron creates our best-looking hollow-body iron-wood to date. The concave treatment to the shape of the E523 Iron creates a smaller topline, and a less visible backend for a more compact look at address, while still providing the forgiveness and ease of launch that our iron-woods have become famous for.

Ultra-Light Premium Shafts

The C523 Iron comes stock with the super-light UST Mamiya HL-SST graphite shaft by that range from 45 to 60 grams depending on the flex. It is also available in a True Temper XP-85 steel shaft.

The UST Mamiya HL-SST shafts feature Stabilized Shaft Tech, a softer tip and a mid-range flex. Stabilized Shaft Tech is an added cross weave that reduces ovaling for better stability during the loading and unloading of the shaft.

The True Temper XP-85 steel shaft is designed to deliver maximum peak trajectory for explosive distance and are an excellent option for players wanting a higher ball flight with a moderate ball spin.

Specifications

Stock Graphite Shaft: UST Mamiya HL-SST

Stock Steel Shaft: True Temper XP-85

Stock Grip: Lamkin Z5

MODEL	LOFT	LIE ANGLE	LENGTH
#3	20°	60°	39.25″
#4	23°	61°	38.75″
#5	26°	61.5°	38.25″
#6	29°	62°	37.75″
#7	32°	62.5°	37.25″
#8	36°	63°	36.75″
#9	40°	63.5°	36.25″
PW	44°	64°	35.75″
AW	49°	64°	35.5″

MODEL	FLEX	WEIGHT	LAUNGH	TORQUE
UST Mamiya HL-SST 45	L	49.0g	High	4.7°
UST Mamiya HL-SST 50	A	55.0g	High	4.6°
UST Mamiya HL-SST 50	R	59.0g	High	4.6°
UST Mamiya HL-SST 60	S	65.0g	Mid/High	4.4°
UST Mamiya HL-SST 60	X	65.0g	Mid/High	4.3°
